3.2 Bosiny-NDAB01
Automatic Retractable Bollards
- Impact Rating
- k12
- Material
- Stainless Steel
3.2 / Current catalog image Smart Parking / Bollard

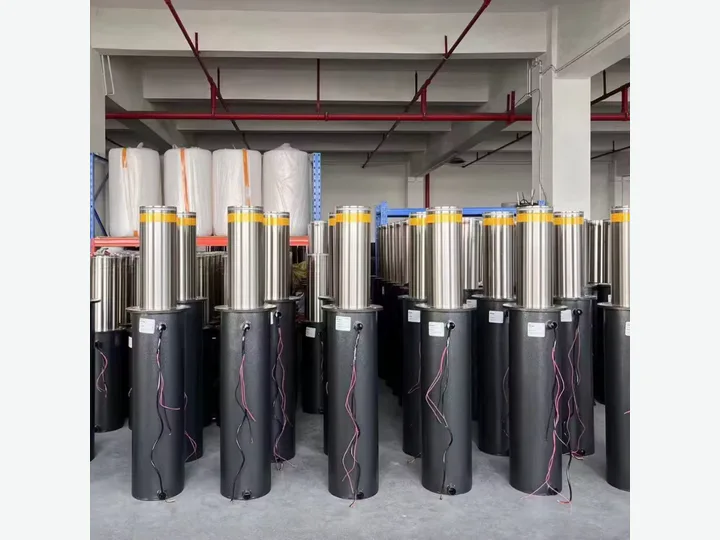

Hydraulic Bollard
Automatic Hydraulic Telescopic Pile Intelligent Remote Control Lifting Column Traffic Barrier 304 Stainless Steel Ip68 Rated
- Model
- BSN-AB2603
- Catalog ID
- 1601724755263
- Product family
- Bollard
- Specification fields
- 17
Exact configuration and parameter values are confirmed against the requested model before quotation.
Product data
Catalog specifications
- Material
- Stainless Steel
- Diameter x length
- 219mmx600mm(8.62inx23.62in)
- Pipe thickness
- 6mm(0.24in)
- Reflective Grade
- 3m
- Reflective
- Reflective
- Water fillable
- non-water fillable
- Installation Method
- drilling/burying
- Has light
- With Light
- Protection Rating
- Ip68
- Application
- Roadway Safety
- Color
- Yellow
- Usage
- Road Traffic Safe
- Packing
- Wooden Case
- Pre embedded depth
- 1105mm
- Elevating height
- 600mm
- Cylinder diameter
- 219mm
- Column thickness
- 6mm+1mm
Product terms
Related capabilities
- Smart Parking
- Bollard
- Hydraulic Bollard
Quote preparation
Confirm quantity, destination and required configuration.
Reference catalog ID 1601724755263 in the project brief.3.2 / Bollard
