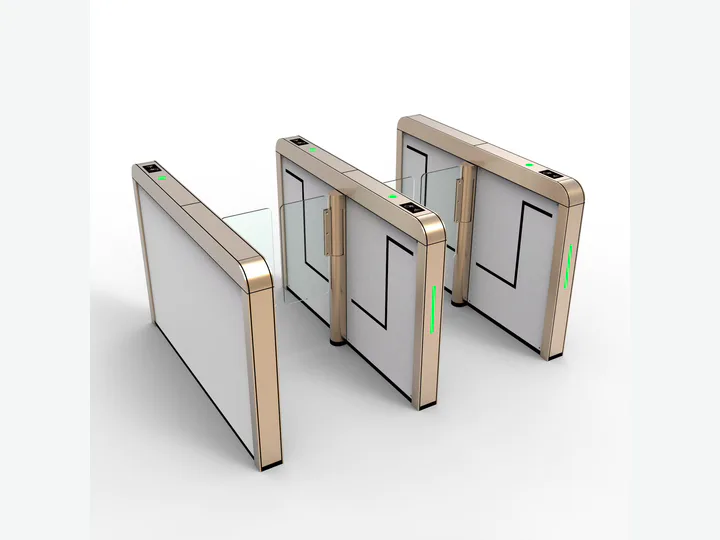

Speed gate Turnstile BSN-S880 2.4 / Current catalog image

Turnstile / Speed Gate

Speed gate Turnstile

Fitness Center Gym Access Rfid Card Swipe Servo Motor Swing Barrier Turnstile Gate With Ip55 Protection And 2-way Operation

Model
BSN-S880
Catalog ID
1601345192533
Product family
Speed Gate
Specification fields
9
Request this product Back to family

Exact configuration and parameter values are confirmed against the requested model before quotation.

Product data

Catalog specifications

9 fields mapped to product 1601345192533
Protection level
IP55
Barrier open/close time
0.6 s
Barrier motor
Servo Motor
Access control type
RFID Card
Turnstile function
Anti-Pinch, Collision Avoidance, Anti-Tailgating
Operation Direction
2-Way
Communication Interface
TCP/IP
Material
Stainless Steel
Application
Security Access Control Management

Manufacturer material

Official flyer: BSN-S880/S (/D)

Archived 2022 manufacturer pages, reference only. Patent ZL 2021 3 0414263.8.

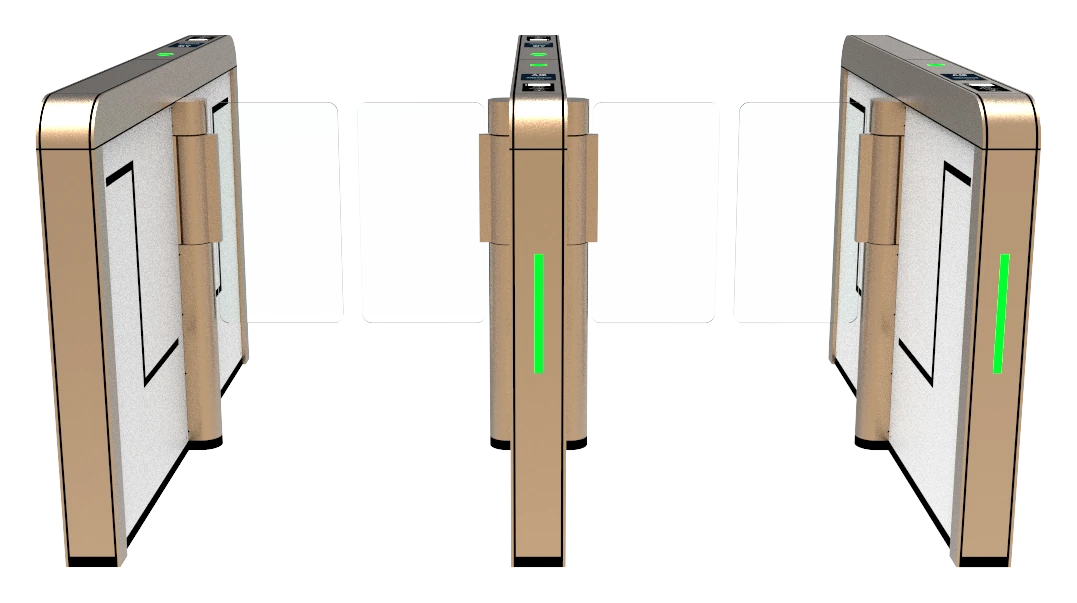

Official BSN-S880 front view with three cabinets and transparent barrier panels Front lane arrangement Official BSN-S880 angled view showing optional face-reader placement Lane arrangement with optional readers Official BSN-S880 cabinet finish and integrated reader detail Cabinet and reader detail

Product renders exported from the original manufacturer files. Reader options and final configuration are confirmed during RFQ.

Flyer specification table

Models
BSN-S880/S single-lane cabinet; BSN-S880/D dual-lane cabinet
Cabinet material
High-grade aluminum alloy, CNC + sandblasted anodized, acrylic / tempered-glass cabinet
Barrier panel
Acrylic or tempered glass
Identification
Card, QR code, ID card, face recognition; passage / elevator LCD display [optional]
Opening speed
0.5–0.9 s, adjustable
Passage indicator
Soft-light LED on front end and top cover
Motor
High-end DC brushless servo motor; imported-motor upgrade available
Gearbox
High-precision planetary gear reducer
Movement
Anti-collision: auto buffer-lock on impact with self-recovery
Sensors
Hidden installation, 4 groups of IR light curtains, 10 pairs IR total, custom expansion available
Protection
IR + current anti-pinch; fire-alarm linkage, power-off keeps lane free of resistance
Lane width
Swing panel 275 mm; cabinet incl. movement 760 mm; clear passage 600 mm
Cabinet size
1550 × 120 × 1000 mm

Translated from the official 2022 Chinese flyer spec page; confirm against the ordered model before quotation.

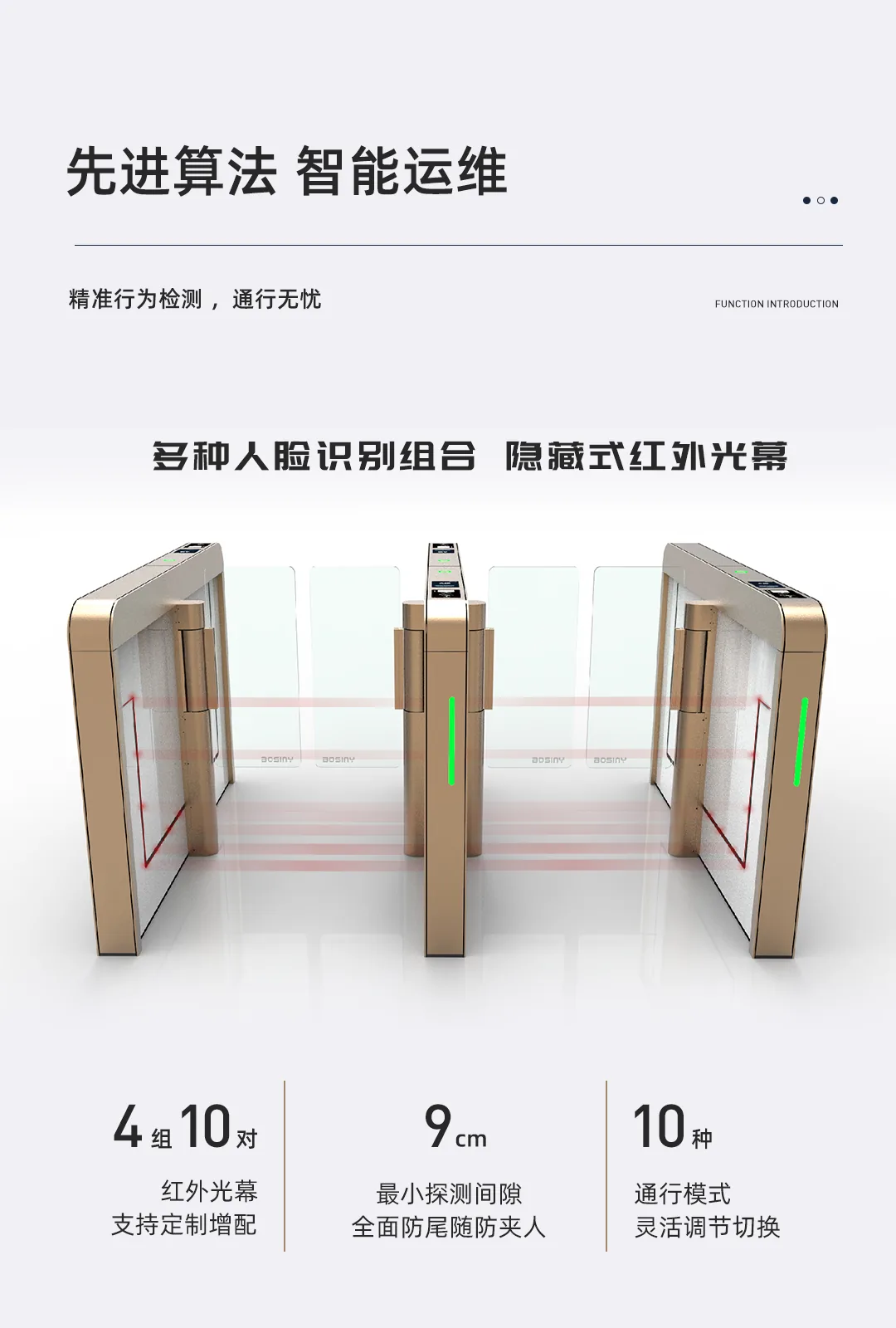

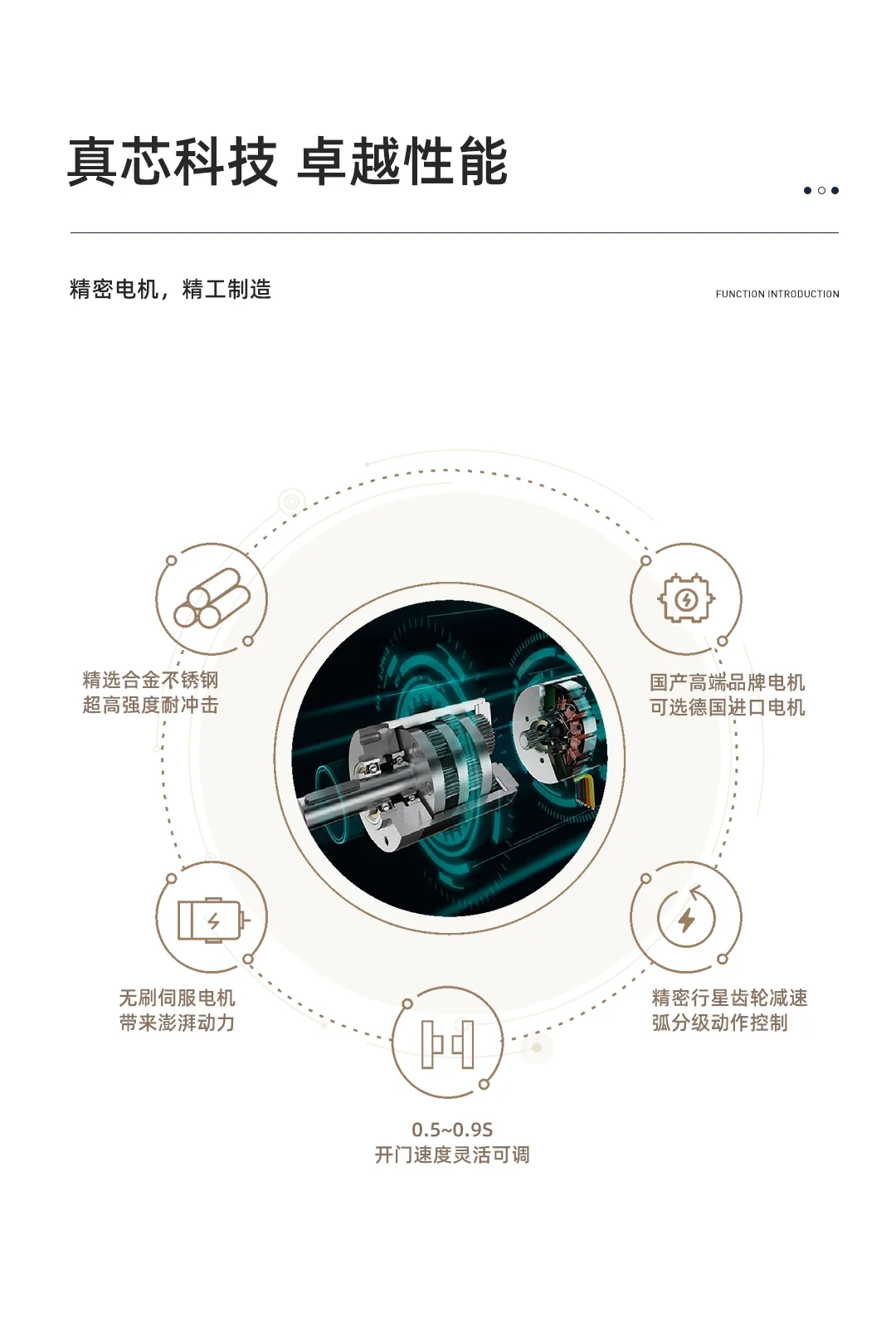

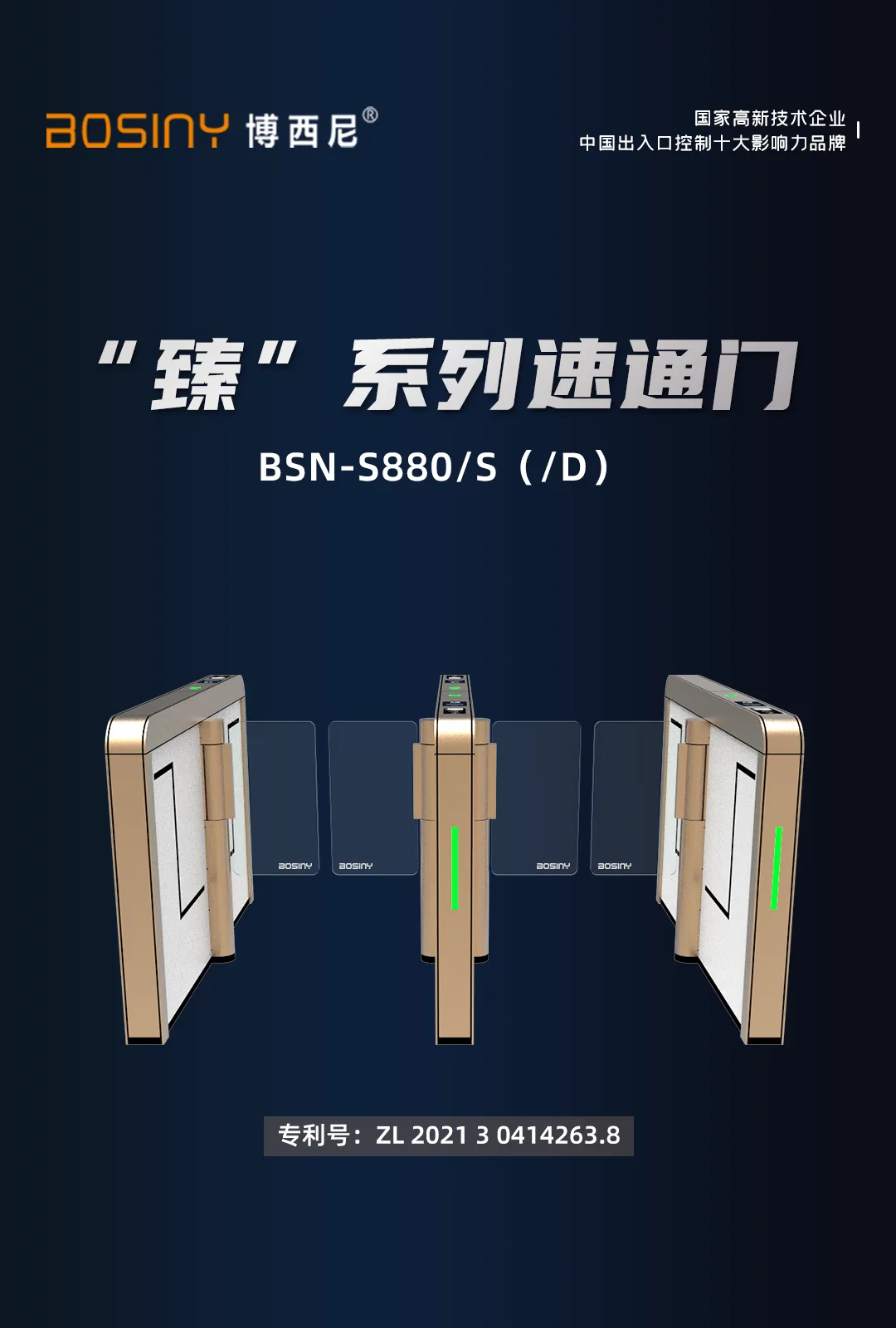

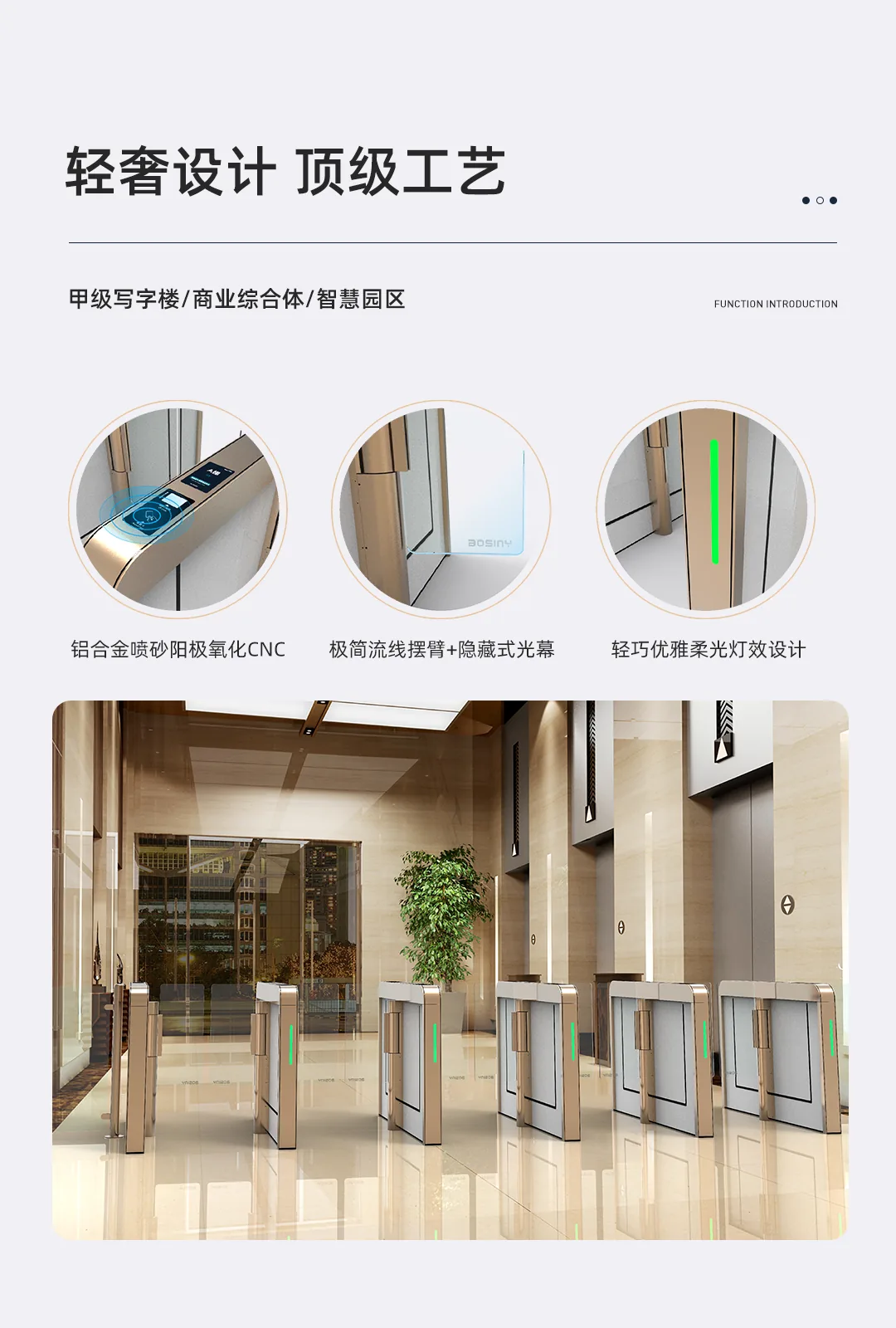

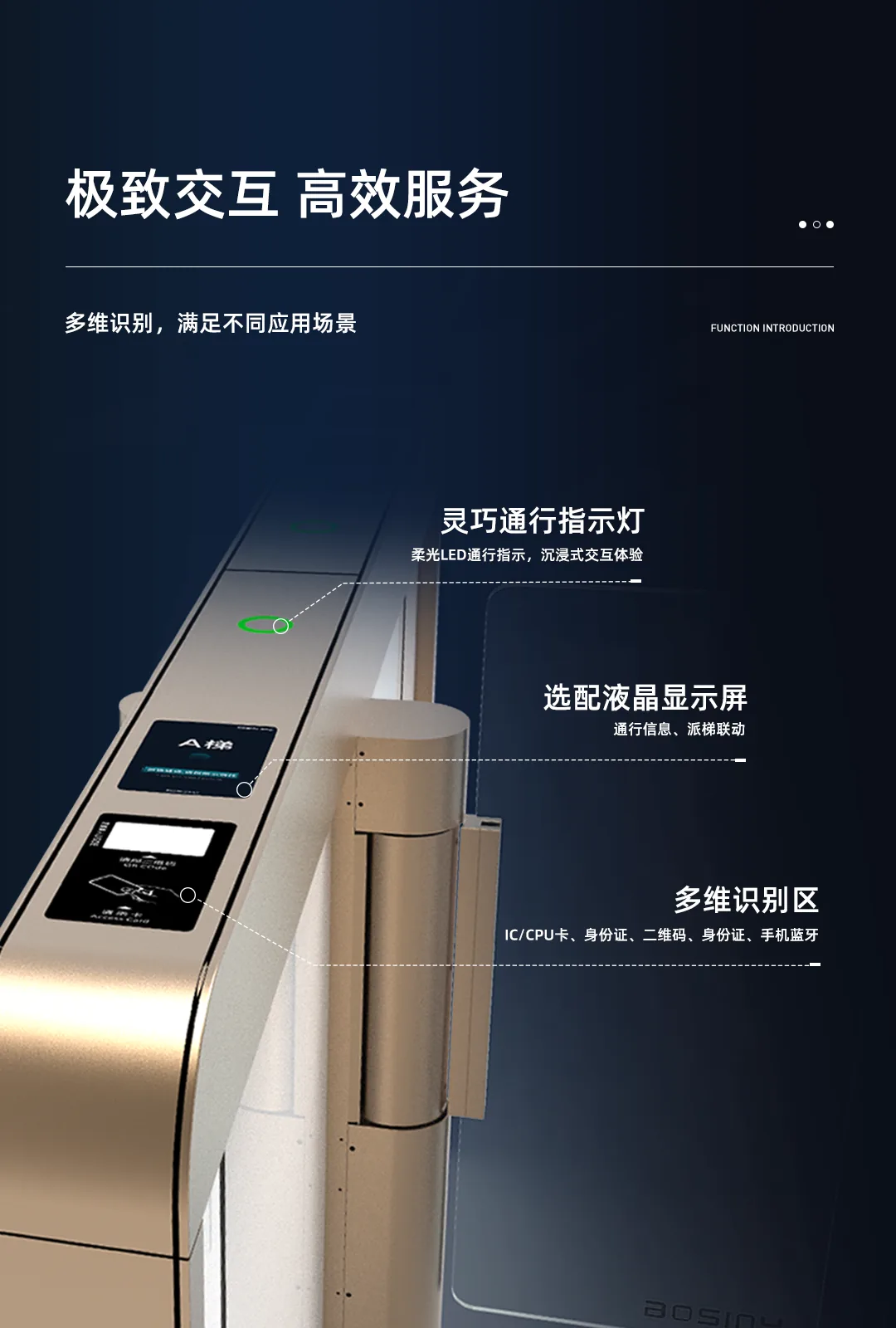

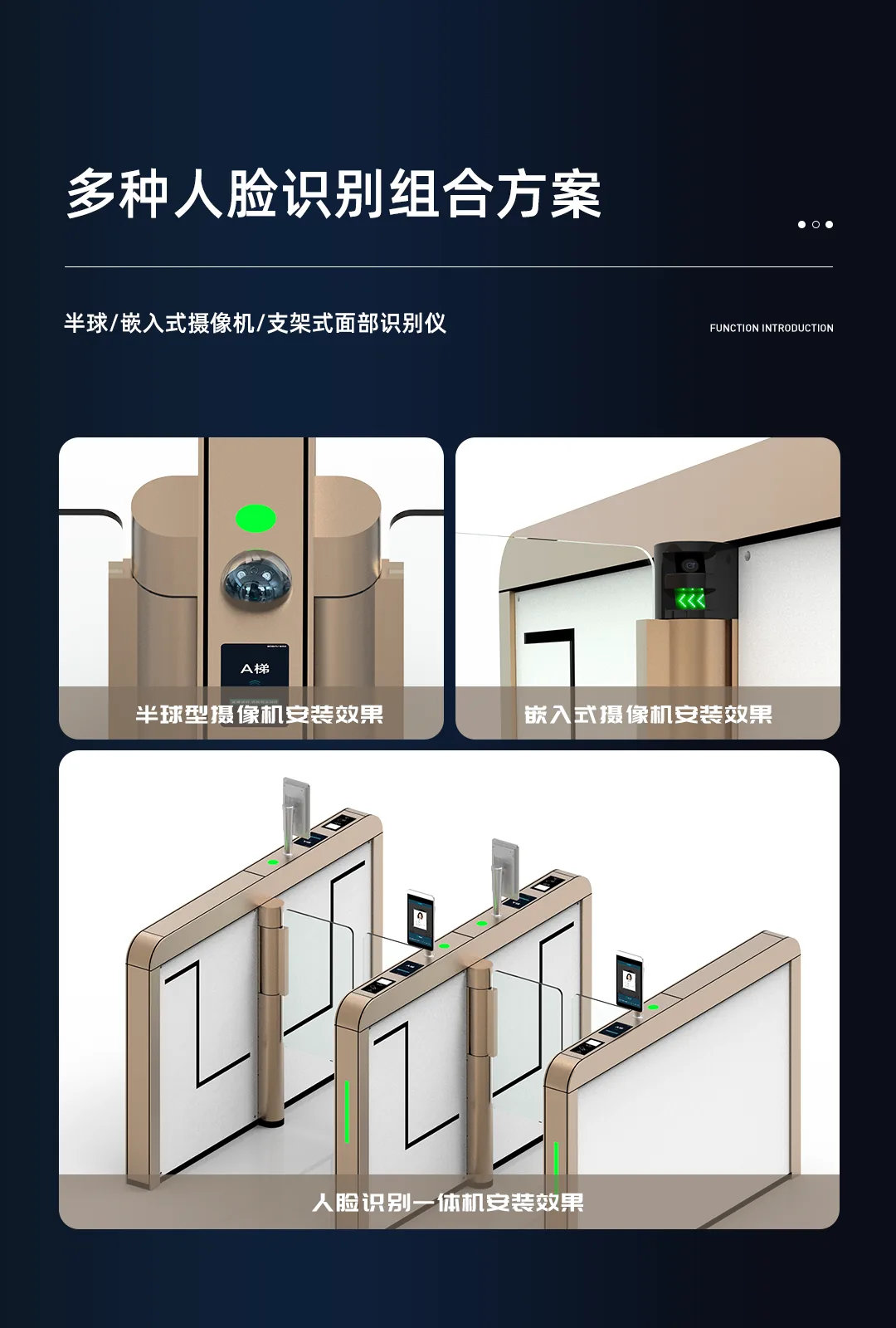

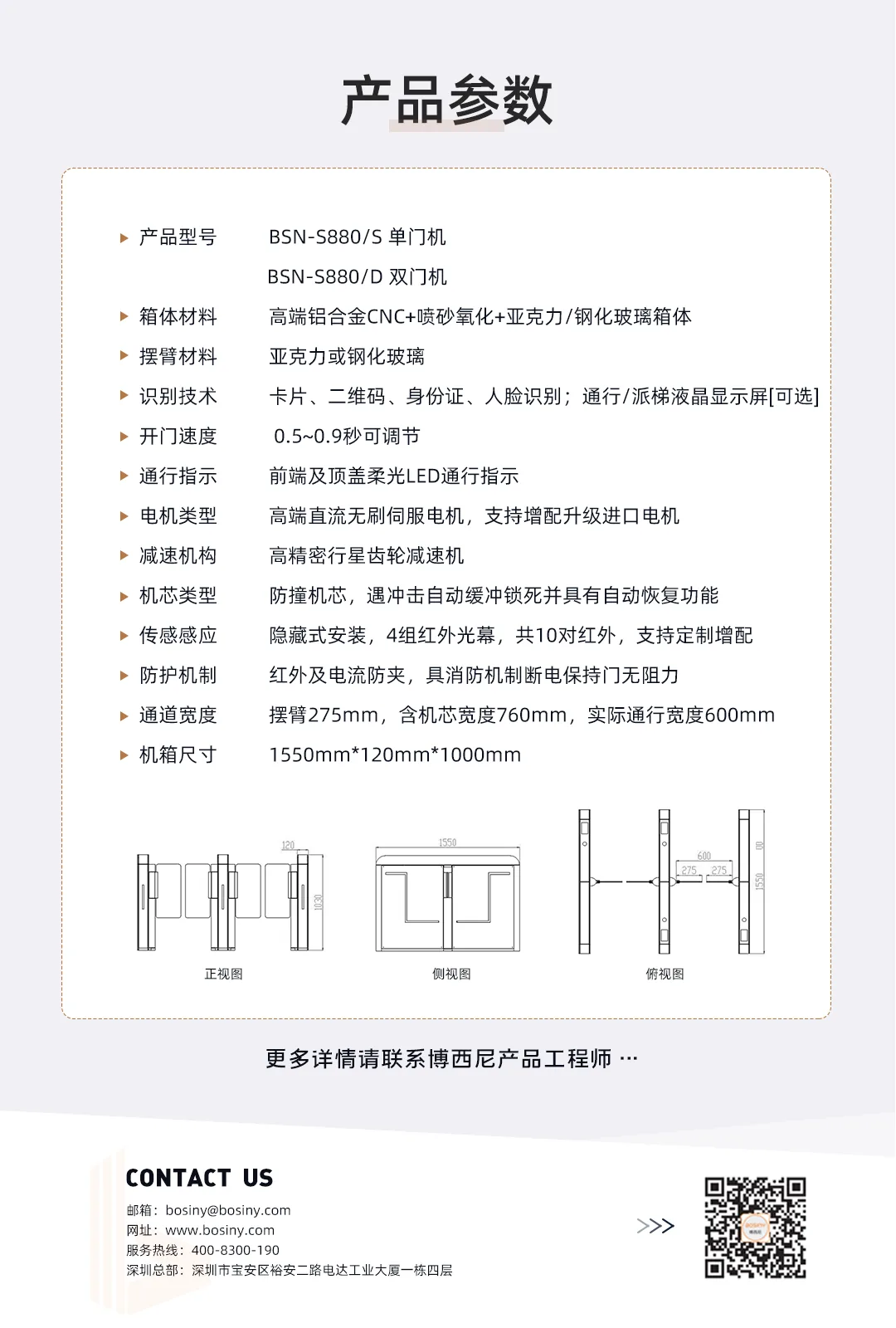

BSN-S880/S (/D) official flyer page 1 Page 1 BSN-S880/S (/D) official flyer page 2 Page 2 BSN-S880/S (/D) official flyer page 3 Page 3 BSN-S880/S (/D) official flyer page 4 Page 4 BSN-S880/S (/D) official flyer page 5 Page 5 BSN-S880/S (/D) official flyer page 6 Page 6 BSN-S880/S (/D) official flyer page 7 Page 7

Product terms

Related capabilities

Quote preparation

Confirm quantity, destination and required configuration.

Reference catalog ID 1601345192533 in the project brief.
